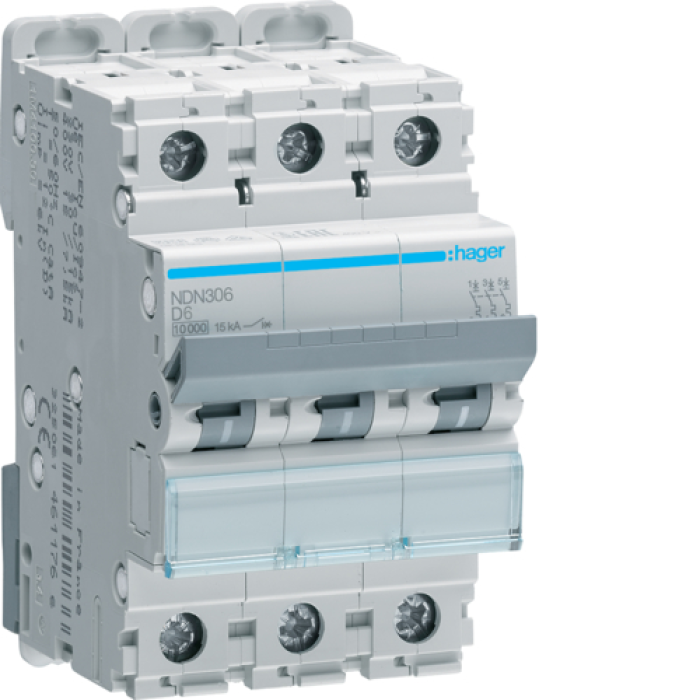

Hager 3P 10kA D-6A 3M Circuit Breaker, NDN306

Description Hager 3P 10kA D-6A 3M Circuit Breaker, NDN306

Voltage generator article: NDN306
Discharger type: Automatic
Discharger: Hager
Number of poles: 3 poles
Nominal flow: 6 A
Specification characteristics: D
Nominal output: 10 kA
Rated operating voltage: 230/400 V AC
Rated frequency: 50/60 Hz
Rated impulse voltage: 4 kV
Pulse exchange class: 3
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection stage (terminal): IP20
Protection stage (housing): IP20
Maximum conductor overcut (hard): 25 mm²
Maximum Conductor overcut (bend): 16 mm²
Terminal tightening torque: 2.8 Nm
Mounting method: On DIN rail
Width (number of modules): 3 modules
Height: 83 mm
Depth: 70 mm
Operating temperature: View -25 to +70 °C
Storage temperature: -40 to +80 °C
Voltability: 95% at 55 °C
Insulation class: II
Overvoltage category: III
Blockage: 2
Contact position indicator: Yes
