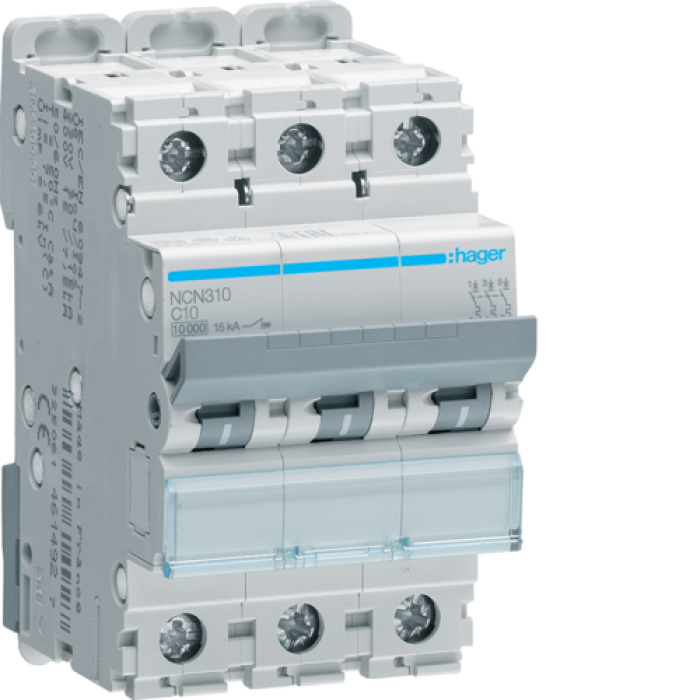

Hager 3P 10kA C-10A 3M Circuit Breaker, NCN310

Description Hager 3P 10kA C-10A 3M Circuit Breaker, NCN310

Type of vibrator: Automatic generator
Series: NCN
Model: NCN310
Virobnik: Hager
Nominal flow (In): 10 A
Number of poles: 3P
Specification characteristics: C
Nominal switching capacity (Icn): 10 kA
Rated operating voltage (Ue): 230/400 V AC
Frequency: 50/60 Hz
Energy transfer class: 3
Rated impulse voltage (Uimp): 4 kV
Nominal insulation voltage (Ui): 500 V
Short circuit voltage (Ics): 10 kA
Mounting: DIN rail
Width in modules: 3 M
Overall width: 52.5 mm
Overall height: 83 mm
Overall depth: 70 mm
Conductor crossbar (hard): 1 ... 35 mm²
Conductor crossbar (flexible): 1 ... 25 mm²
Protection level (IP): IP20
Operating temperature range: -25 ... +70 °C
Saving temperature range: -40 ... +80 °C
Mechanical wear resistance: 20000 cycles
Electrical wear resistance: 10000 cycles
Standard: IEC 60898-1
Housing material: Thermoplastic
