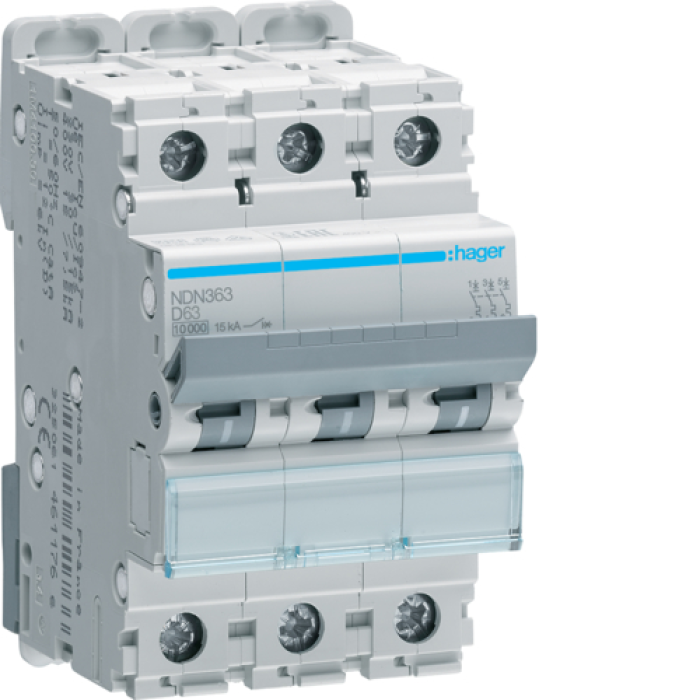

Hager 3P 10kA D-63A 3M Circuit Breaker, NDN363

Description Hager 3P 10kA D-63A 3M Circuit Breaker, NDN363

Number of poles: 3
Nominal flow: 63 A
Application characteristics: D
Nominal voltage: 10 kA
Nominal operating voltage: 230/400 V
Frequency: 50/60 Hz
Number of modules: 3
Width: 52.5 mm
Height: 83 mm
Glibin: 70 mm
Nominal insulation voltage: 500 V
Nominal impulse voltage: 4 kV
Energy class: 3
Mechanical wear resistance: 20,000 cycles
Electrical wear resistance: 10,000 cycles
Operating temperature range: -25 to 60 °C
Saving temperature range: -40 to 80 °C
Terminal protection level: IP20
Protection level (at installed stand): IP40
Minimum span of the connected hard cable: 1 mm²
Maximum width of the connected hard drive cable: 25 mm²
Minimum span of the connected cable: 1 mm²
Maximum span of the connected cable: 16 mm²
Terminal tightening torque: 2.8 Nm
Mounting type: DIN rail
Compliance with standard: EN 60898-1
Maximum moisture content: 95% at 55°C
