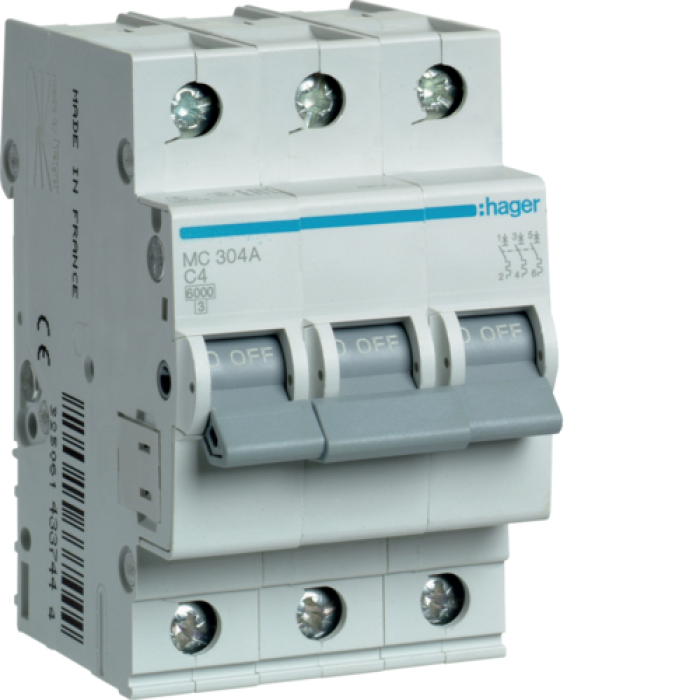

Hager 3P 6kA C-4A 3M Circuit Breaker, MCN304

Description Hager 3P 6kA C-4A 3M Circuit Breaker, MCN304

Virobu type: Automatic vimikach
Virobnik: Hager
Series: MCN
Article: MCN304
Number of poles: 3P
Number of stolen poles: 3
Nominal flow (In): 4 A
Application characteristics: C
Nominal limiting voltage (Icu): 6 kA
Nominal operating voltage (Ics): 6 kA
Nominal operating voltage of the exchanger (Ue AC): 230/400 V
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Energy exchange class: 3
Sputter type: Thermomagnetic
Width in DIN modules: 3
Mounting method: On DIN rail
Protection level IP (housing): IP20
Protection level IP (installations): IP40
Operating temperature range: -25 to +70 °C
Temperature range: -40 to +80 °C
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Maximum overcut of the connected cable (hard): 25 mm²
Maximum overcut of the connected cable (bend): 16 mm²
Terminal tightening torque: 2.8 Nm
Housing material: Self-extinguishing thermoplastic
Compliance with standards: IEC/EN 60898-1
