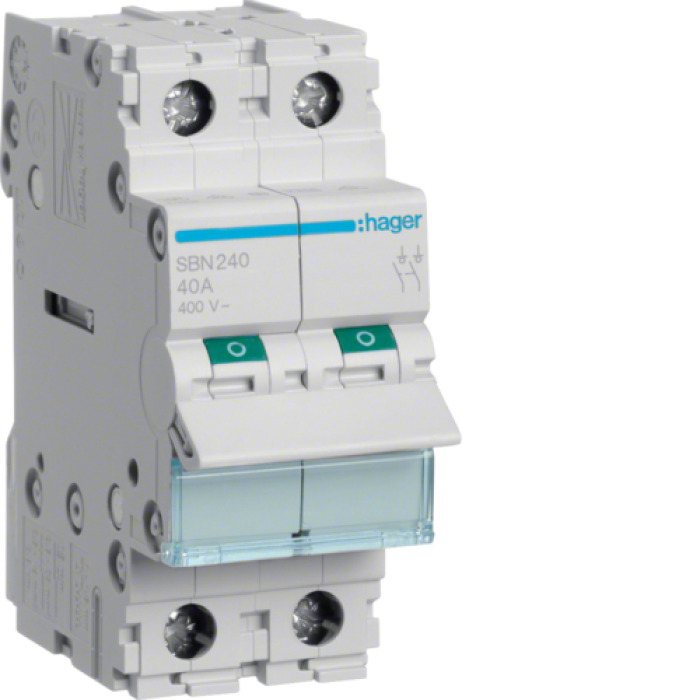

Hager Load Switch, 2-Pole 40A/400V, SBN240

Description Hager Load Switch, 2-Pole 40A/400V, SBN240

Device type: Vimikach navantazhenya
Virobnik: Hager
Article: SBN240
Number of poles: 2P
Nominal flow (In): 40 A
Nominal operating voltage (Ue): 230/400 V AC
Nominal Insulation voltage (Ui): 500 V
Nominal impulse withstand voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Nominal short-circuit current (Icw): 4.5 kA (1 s)
Category zastosuvannya: AC-22A
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Terminal type: Screw
Piece of the connected cable (hard): 1.5 - 25 mm²
Spread of the connected cable (bend): 1 - 16 mm²
Tightening torque of the terminals: 2.8 Nm
Protection level (terminal): IP20
Protection stage (front panel at the shield): IP40
Operating temperature range: from -25 to +50 °C
Temperature range Saving: -40 to +80 °C
Mounting method: DIN-rail
Number of modules: 2
Width: 35.6 mm
Height: 83 mm
Depth: 68 mm
Width standard: IEC/EN 60947-3
Contact position indication: So
Handle color: Black
Handle position: VVIMK./VIMK.
