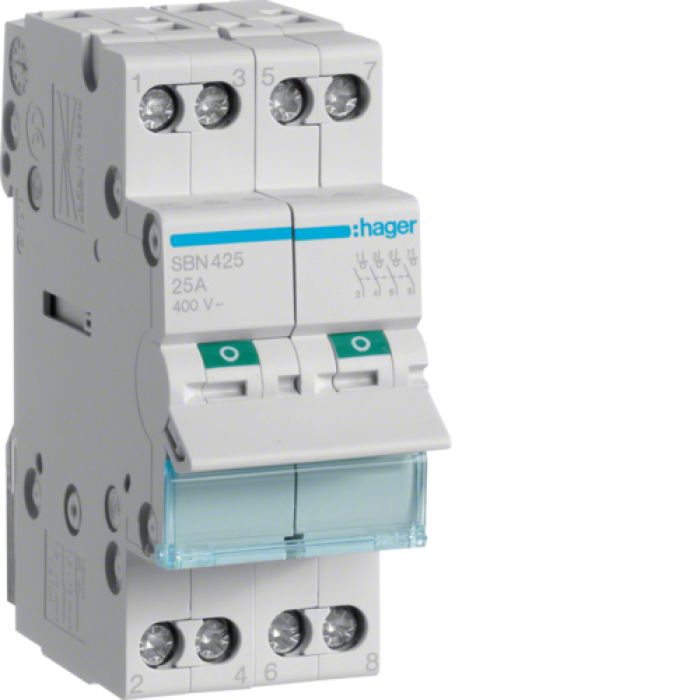

Hager Load Switch, 4-Pole 25A/400V, SBN425

Description Hager Load Switch, 4-Pole 25A/400V, SBN425

Virobnik: Hager
Model: SBN425
Device type: Vimikach navantazhenya
Number of poles: 4P
Nominal flow: 25 A
Nominal operating voltage: 400 V AC
Nominal insulation voltage: 500 V
Nominal pulse vitrium voltage: 6 kV
Nominal frequency: 50/60 Hz
Strum type: AC
Retin of conductors that are connected (hard): 1.5 - 25 mm²
Retin conductors, what connectable (flexible): 1.5 - 16 mm²
Terminal tightening torque: 2.8 Nm
Mounting type: DIN-rail
Width in modules: 4
IP protection level (front panel): IP20
IP protection level (terminal): IP20
Operating temperature range: -20 - +50 °C
Saving temperature range: -40 - +80 °C
Electrical wear resistance: 10000 cycles
Mechanical wear resistance: 20000 cycles
Storage category: AC-22A
Standard: EN 60947-3
Step of obstruction: 3
Height: 83 mm
Width: 70 mm
Depth: 68 mm
