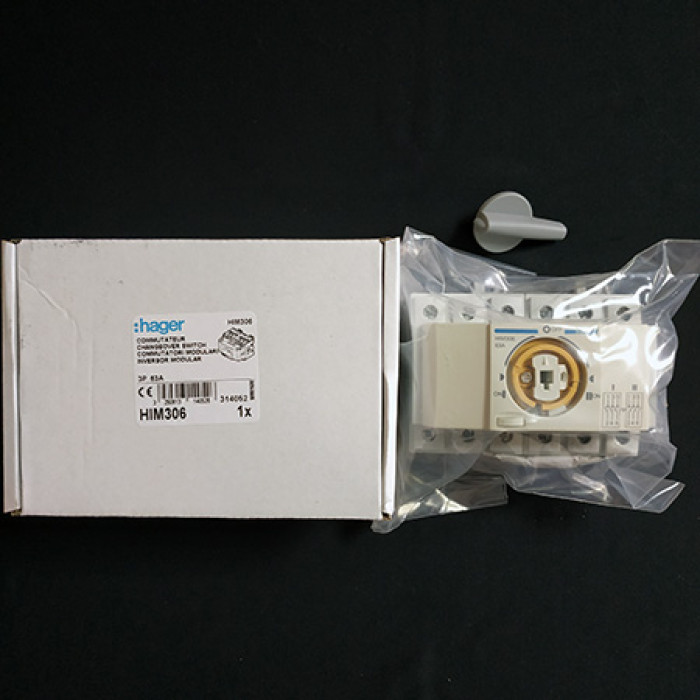

Changeover switch Нager HIM306 three-phase 63A, 3P

Description Changeover switch Нager HIM306 three-phase 63A, 3P

Type of switch: Changeover switch
Virobnik: Hager
Series: HIM
Model: HIM306
Number of poles: 3P
Nominal flow In: 63 A
Rated operating voltage Ue: 230/400 V AC
Nominal insulation voltage Ui: 500 V
Nominal impulse voltage Uimp: 6 kV
Drying category: AC-22A
Nominal short-hour winding rate Icw (1 s): 1.26 KA
Connection type: Tunnel terminals
Maximum overcut of the connected cable: 25 mm²
Maximum overcut of the connected hard cable: 35 mm²
Mixing position speed: 3 (I-0-II)
Mounting type: DIN rail
Number of modules: 4.5
Width: 81 mm
Height: 85 mm
Mounting depth: 70 mm
Feet (from the front side): IP20
Operating temperature range: -20 to +50 °C
Temperature range: -20 to +70 °C
Water content: up to 95%
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Compliance with standards: EN 60947-3, IEC 60947-3
Vaga: 0.440 kg
