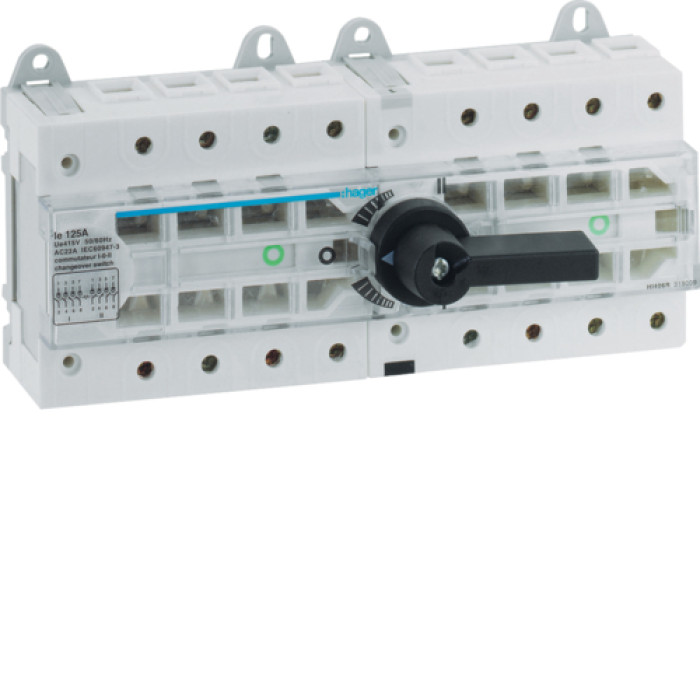

HI406R Hager three-phase changeover switch 125A

Description HI406R Hager three-phase changeover switch 125A

Nominal flow: 125 A
Number of poles: 4
Number of phases: 3
Switching type: Changeover (I-0-II)
Nominal operating voltage of the exchanger (Ue): 230/400 V
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Frequency: 50/60 Hz
Resistance to short-term flashing (for protection against heat loss): 25 kA
Electrical life: 10000 cycles
Mechanical life: 20,000 cycles
Mounting type: DIN rail
Number of DIN modules: 8
Clamp type: Gwent
Crossing of the connected hard cable: 1.5 - 50 mm²
Crossing of the connected cable: 1.5 - 35 mm²
Protection level: IP20 (clem)
Operating temperature: -20 to +50 °C
Storage temperature: -40 to +70 °C
Standard Types: EN 60947-3, IEC 60947-3
Maximum power output per pole: 4 W
Height: 83 mm
Width: 140 mm
Glibina: 70 mm
