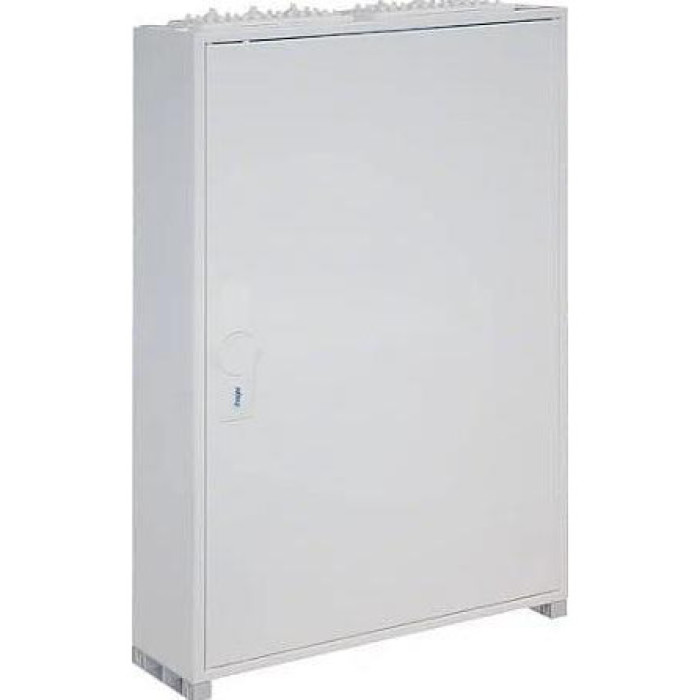

Shield Univers IP44/II 950x550x161mm 156 mod.

Description Shield Univers IP44/II 950x550x161mm 156 mod.

Series name: Univers
Model: FWB62M2
Equipment type: Rozpolny shield
Installation type: Vbudovaniye
Protection level IP: IP44
Class of protection against electric shock: II
External height: 950 mm
External width: 550 mm
External depth: 161 mm
Total number of modules: 156
Number of rows: 13
Number of modules per DIN rail: 12
Material body: Sheet steel
Door material: Sheet steel
Body color: RAL 9010
Door color: RAL 9010
Nominal operating voltage: 400 V AC
Nominal frequency: 50/60 Hz
Maximum nominal flow (In): 250 A
Mechanical shock resistance (IK code): IK07
Door visibility: Yes
Door type: Metalevi
Door hinged side: Right or left (re-hung)
Lock type: Lock with key
Operating temperature range: -25...+40 °C
Temperature range: -40...+70 °C
Maximum water content: 95%
Compliance with standards: EN 61439-1, EN 61439-3
