Ford Transit 2.2 TDCI Timing Tool Set
for Duratorq TDCi Chain Engines

A set for holding the crankshaft and camshaft sprockets during timing chain replacement.

Functional Purpose

Professional set for precise positioning and holding of the crankshaft and camshaft sprockets during timing chain replacement on 2.2 TDCi engines from 2006 onwards.

Compatibility

Designed for Ford Ranger (2011–), Transit/Tourneo Custom (2012–2016), Transit (2006–2018), Land Rover Defender (2011–2016), Jaguar X-Type (2005–2010).

OEM Compatibility

Each component in the QS10801 kit is manufactured to OEM factory specifications, specifically 303-698 and 303-1587.

Description QS10801

The Ford Transit 2.2 TDCi Timing Tool Set QS10801 is a specialized solution for workshops servicing Ford Duratorq TDCi chain-driven diesel engines. This kit is designed for the 2.2 Common Rail engines installed in popular commercial vehicles such as the Ford Transit, Ranger, as well as the Land Rover Defender and Jaguar X-Type. The kit contains all the necessary tools for quick and safe job completion.

Failure to correctly set the timing on a 2.2 TDCi without this kit often results in incorrect chain tension, faulty valve timing, and serious engine damage. The QS10801 tools effectively solve this problem: the camshaft retainers securely hold the sprockets, the 303-698 flywheel alignment pin precisely positions the crankshaft, and the 303-1587 crankshaft sprocket locking tool ensures accurate installation according to the manufacturer's specifications.

Application

Engine codes:

Ford 2.2 TDCi: GBVAJPF, GBVAJQJ, GBVAJQW, CVF5, CVFF, CVR5, CYF4, CYF5, CYFA, CYFB, CYFC, CYFF, CYFG, CYR5, DRF4, DRF5, DRFA, DRFB, DRFC, DRFE, DRFF, DRFG, DRR5, P8FA, P8FB, PGFA, PGFB, QVFA, QWFA, SRFA, SRFB, SRFC, SRFD, SRFE, UHFA, UHB, UHR5, USR6, UYR6

Ford 3.2 TDCi: SA2R, SA2S, SA2W, SAFA, SAFB

Land Rover 2.2 TD4: ID4/DT224

⚠️ Important: Before ordering, be sure to verify your vehicle's engine code against the list above. The kit is designed exclusively for 2.2 TDCi Common Rail chain engines from 2006 onwards.

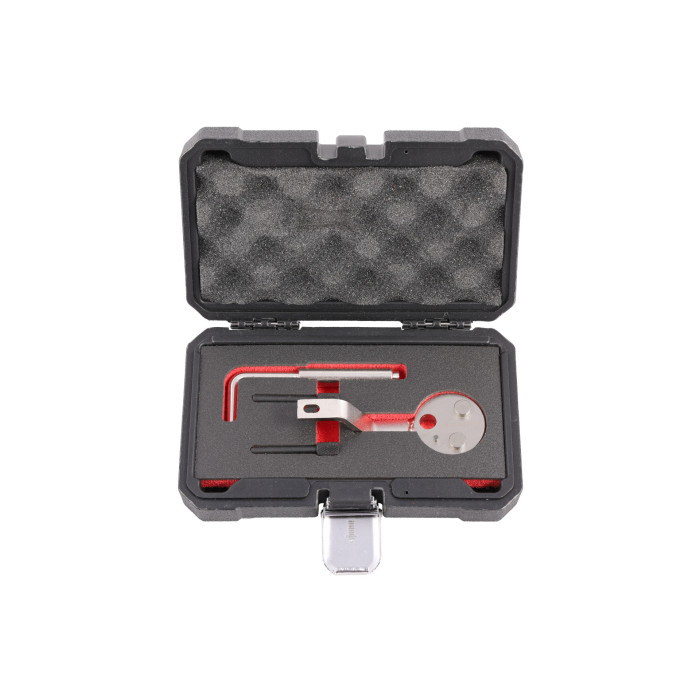

Kit Contents

Key Applications

• When replacing the timing chain or its tensioner on 2.2 TDCi engines.
• When replacing the cylinder head gasket, requiring camshaft locking.
• For precise crankshaft positioning using the 303-698 pin.
• For locking the crankshaft sprocket with the 303-1587 tool.
• For servicing Ford Transit 2.2 TDCi, Ranger 2.2 TDCi, and Land Rover Defender 2.2 TD4 engines.

Advantages of QS10801

Factory Precision

Made of high-strength steel with anti-corrosion coating, ensuring full compliance with the dimensions of original tools 303-698 and 303-1587.

Compact Solution

A minimal yet critically important QS10801 set, designed to take up minimal space in your toolbox and always ready for use.

Engine Safety

The 2.2 TDCi phase locking system prevents shafts from turning during bolt tightening, ensuring correct engine operation after reassembly.

Frequently Asked Questions

Is this kit suitable for a 2008 Ford Transit 2.2 TDCi?

Yes, the Ford Transit (2006-2014) with the 2.2 TDCi engine is fully compatible with this tool kit.

Can this kit be used with a Land Rover Defender 2.2 TD4?

Yes, the Land Rover Defender (2011-2016) with the 2.2 TD4 engine (code ID4/DT224) is fully compatible. Please verify the engine code before ordering.

Is the kit compatible with a Ford Ranger 3.2 TDCi?

Yes, the kit is also compatible with the 3.2 TDCi engine (codes SA2R, SA2S, SA2W, SAFA, SAFB) that was fitted to the Ford Ranger.

What is the warranty for the QS10801 kit?

The tool is guaranteed for 12 months against manufacturing defects, provided it is used professionally.
