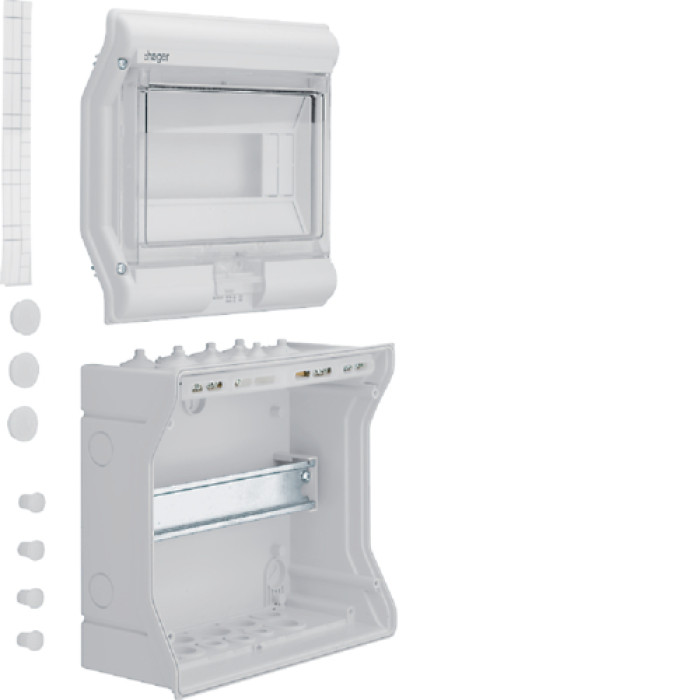

Distribution board for 10 modules, grounding with transparent doors, IP65, VECTOR

Description Distribution board for 10 modules, grounding with transparent doors, IP65, VECTOR

Virobu type: Split shield
Installation type: Vbudovaniye
Number of modules: 10
Number of rows: 1
Protection level IP: IP65
Impact level IK: IK09
Body material: Polycarbonate
Door material: Polycarbonate
Door type: Prozori
Body color: Gray
Color of doors: Prosorium
Nominal voltage: 400 V alternating flow
Nominal frequency: 50 Hz
Nominal flow: 63 A
Electrical insulation class: II (double insulation)
Tested with baked dart: 850 °C
Operating temperature range: -25 °C to +60 °C
Storage temperature: from -35 °C to +60 °C
Resistance to UV-improvement: Yes
Avoid halogens: Yes
Self-extinguishing material: So
Availability of DIN rail: Yes
Number of DIN rails: 1
The presence of terminals blocks N/PE: Yes
Number of terminal connections N: 10
Number of terminal connections PE: 10
Possibility of sealing: Yes
Possibility of reversible door installation: Yes
Performance standards: IEC 60670-24, EN 62208
