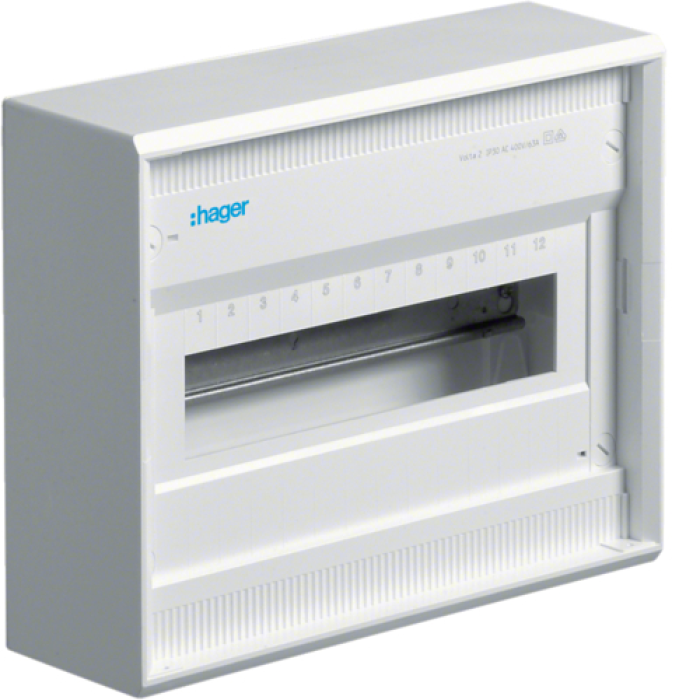

Distribution board for 12 (14) modules, charger without doors, VOLTA

Description Distribution board for 12 (14) modules, charger without doors, VOLTA

Product type: Switchboard housing
Model: VA12CN
Series: Volta
Vyrobnik: Hager
Installation type: Joined (in-place)
Number of modules: 12 (possibly extended to 14)
Number of rows: 1
Door appearance: No
Case material: Impact-resistant plastic (polystyrene)
Case colour: White (RAL 9010)
Protection level IP: IP30
Electrical safety class: II (all-round Insulation)
Overall dimensions of the housing (HxWxD): 290 x 300 x 90 mm
Dimensions for installation (HxWxD): 270 x 280 x 90 mm
Installation depth: 90 mm
Dimensions of DIN rails: 1
DIN rail material: Galvanized steel
Availability of terminal blocks N/PE: No
Availability of cable trims: Yes
Number of cable trims: 2
Bake dart test: 850 °C
Nominal voltage: 400 V AC
Operating temperature: vid -25 to +60 °C
Temperature Saving: -35 to +80 °C
Standard: EN 62208, EN 60670-24
Weight: 1.3 kg
