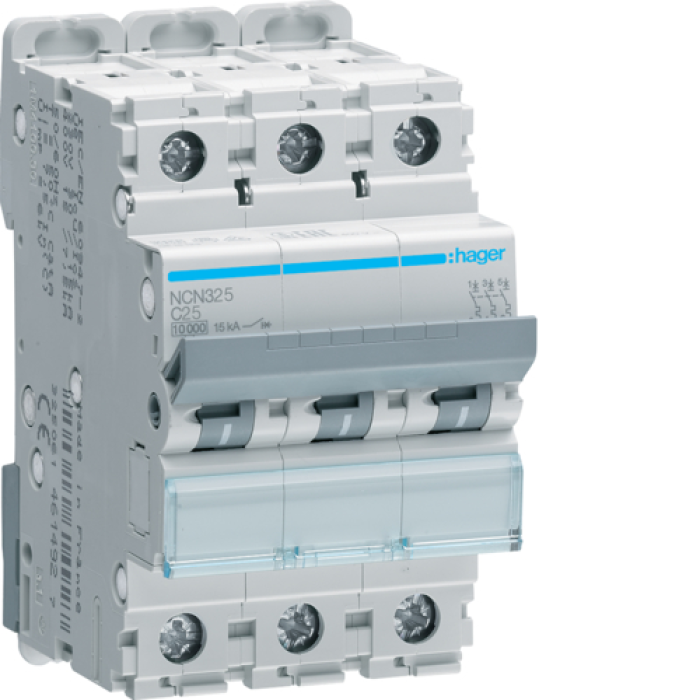

Hager 3P 10kA C-25A 3M Circuit Breaker, NCN325

Description Hager 3P 10kA C-25A 3M Circuit Breaker, NCN325

Brand: Hager
Model: NCN325
Device type: Automatic vimikach
Number of poles: 3P
Nominal flow: 25 A
Application characteristics: C
Nominal voltage (Icn): 10 kA
Width: 3 modules
Nominal operating voltage (Ue): 230/400 V AC
Nominal insulation voltage (Ui): 500 V
Nominal impulse voltage (Uimp): 4 kV
Strum type: Zminniy (AC)
Frequency: 50/60 Hz
Energy class: 3
Electrical wear resistance: 10,000 cycles
Mechanical wear resistance: 20,000 cycles
Protection level (clem): IP20
Protection level (installations at the housing): IP40
Terminal type: Gvintovi
Conductor cross-section (bend): 1.5-16 mm²
Conductor overcut (hard): 1.5-25 mm²
Terminal tightening torque: 2.8 Nm
Operating temperature range: -25 to +60 °C
Temperature range: -40 to +80 °C
Mounting method: DIN rail
Standard: EN 60898-1
Overvoltage category: III
Height: 83 mm
Width: 52.5 mm
Glibin: 70 mm
Vaga: 375 g
