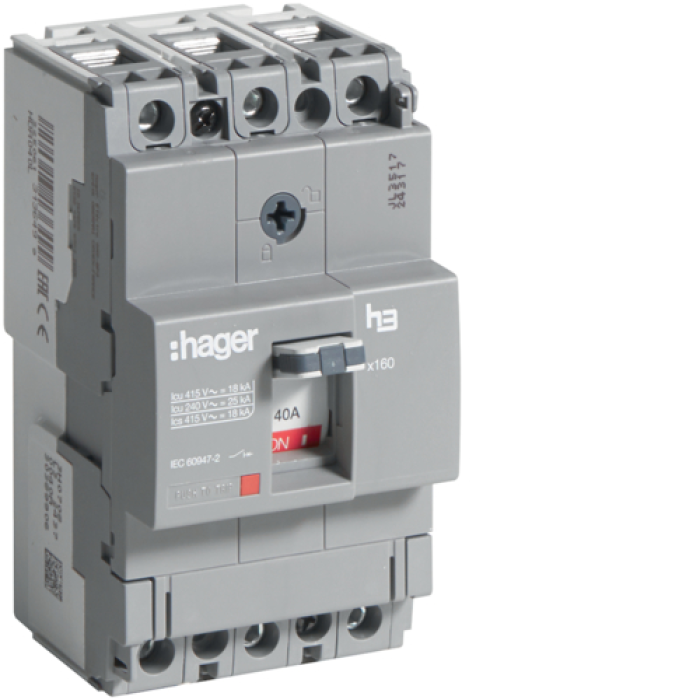

Hager x160 HDA040L, In=40A, 3p, 18kA, circuit breaker

Description Hager x160 HDA040L, In=40A, 3p, 18kA, circuit breaker

Product type: Automatic breaker
Model: HDA040L
Series: x160
Nominal current (In): 40 A
Pole strength: 3
Nominal limiting voltage (Icu): 18 kA at 400V AC
Rated operating voltage (Ics): 18 kA at 400V AC
Opener type: Thermomagnetic
Thermal disconnection range (Ir): 40 A
Electromagnetic disconnection range (Im): 400 A
Nominal operating voltage (Ue): 400 V AC
Nominal insulating voltage (Ui): 690 V
Nominal impulse voltage (Uimp): 8 kV
Frequency: 50/60 Hz
Energy class: 3
Mechanical wear resistance: 10000 cycles
Electrical wear resistance: 6000 cycles
Protection stage (terminal): IP20
Protection stage (front panel): IP40
Range operating temperatures: -25°C to +70°C
Temperature range Saving: from -40°C to +85°C
Installation type: Stationary (on panel)
Connection type: Screw terminals
Maximum cable cut for connection: 95 mm²
