Thread repair kit M8x1.0 QUATROS QS14187M

Description Thread repair kit M8x1.0 QUATROS QS14187M

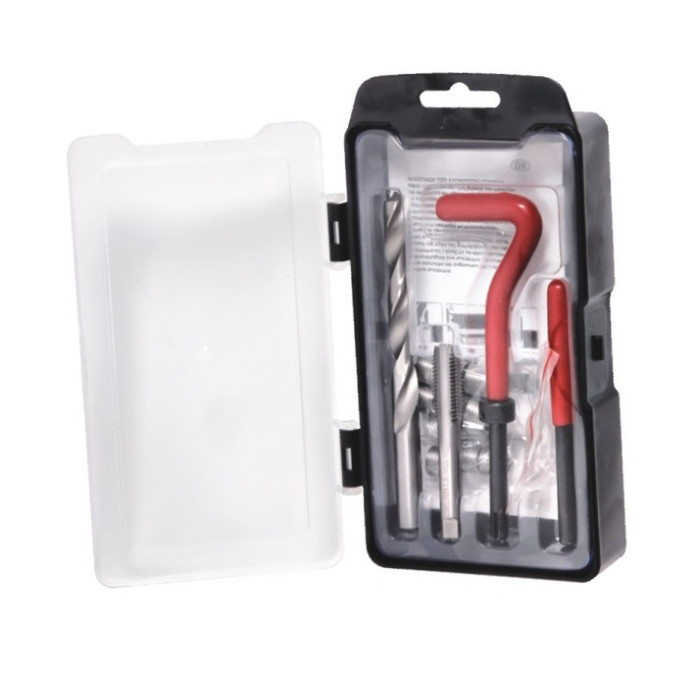

Thread repair kit M8×1.0 for restoring damaged threads. Set with drill, tap, installation tool and 20 wire inserts. Article: QS14187M.

Functional purpose

A kit for repairing and restoring damaged or stripped M8×1.0 threads using wire inserts.

Package contents

Drill, tap, insert installation tool, shank break-off tool, 20 wire thread inserts.

Steel inserts

The restored thread becomes stronger than the original thanks to stainless steel inserts.

Description QS14187M

The thread repair kit M8×1.0 QS14187M is a professional kit for workshops that restore damaged threaded holes of standard size M8. This set includes everything you need: a drill bit for reaming a hole, a tap for cutting a new thread, an insert installation tool, a shank break-off tool and 20 stainless steel wire inserts.

Stripped M8×1.0 threads are a common problem in aluminum crankcases, cylinder heads, brackets and other critical components. Replacing the entire part can be expensive. The QS14187M completely solves this problem: the hole is reamed, a new thread is cut, into which a wire insert is screwed, restoring the original M8×1.0 size.

Specifications

⚠️ Important: Use lubricant when drilling. Make sure the hole is drilled straight, without skew. The length of the insert must match the depth of the hole.

Kit contents

When using this kit

• When M8×1.0 threads in body parts are torn off or damaged.
• To repair threads in engine mounts, brake systems, suspensions, etc.
• When the bolt turns freely and does not tighten to the required torque.
• For thread repair on any part with M8×1.0 thread.

QS14187M Benefits

Stronger than the original

Stainless steel wire inserts create threads that are more wear-resistant than the original.

Complete set

Everything you need to repair a single thread in one set — from drill to inserts.

20 inserts

Enough to repair many holes or for future use.

Frequently asked questions

Is it suitable for aluminum parts?

Yes, the set is ideal for thread repair on aluminum parts, where threads are most often damaged.

How many holes can be repaired?

The set contains 20 inserts, which is enough to repair up to 20 holes (one insert per hole).

Can the inserts be reused?

No, once installed, the insert becomes a permanent part of the threaded hole and is not intended for reuse.

What is the warranty on the QS14187M set?

The tool is guaranteed for 12 months against manufacturing defects under professional use.
