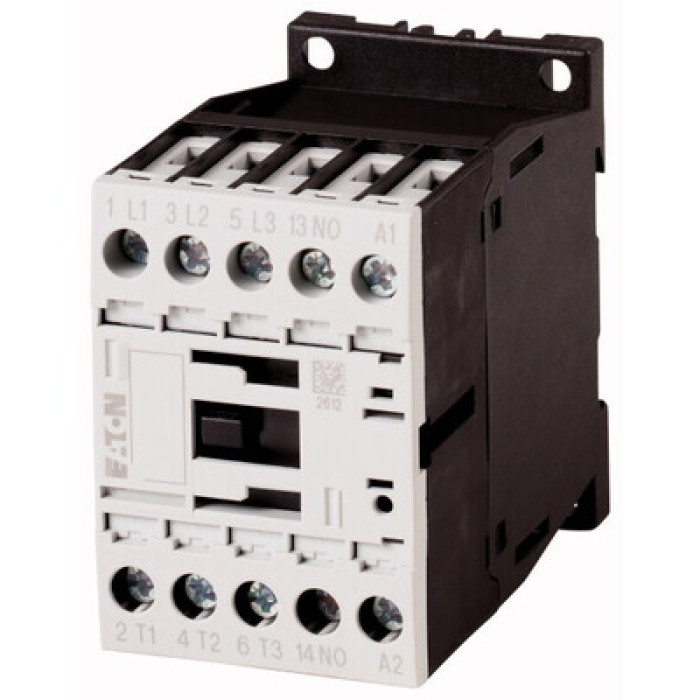

Contactor DILM 09-10 24V DC EATON

Description Contactor DILM 09-10 24V DC EATON

Product category: contactor
Series: DILM
Model: DILM 09-10
Number of head poles: 3
Configuration of additional contacts: 1 NO
Voltage type: DC
Nominal voltage (Uc): 24 V DC
Coil application range (minimal): 0.8 x Uc
Coil application range (maximum): 1.1 x Uc
Coil outlet range (minimum): 0.15 x Uc
Coil outlet range (maximum): 0.6 x Uc
Increased tension of the coil when retracted (20°C): 2.2 W
Increased tension of the cat in the morning (20°C): 2.2 W
Nominal operating flow (AC-3, 220V): 9 A
Nominal operating flow (AC-3, 380V): 9 A
Nominal operating flow (AC-3, 400V): 9 A
Nominal operating flow (AC-3, 440V): 9 A
Nominal working strum (AC-3, 500V): 7 A
Nominal operating flow (AC-3, 690V): 6 A
Nominal operating power (AC-3, 220V): 2.2 kW
Nominal operating power (AC-3, 380V): 4 kW
Nominal operating voltage (AC-3, 400V): 4 kW
Nominal operating power (AC-3, 440V): 4 kW
Nominal operating power (AC-3, 500V): 3.7 kW
Nominal working effort (AC-3, 690V): 4 kW
Nominal thermal flow (vilne povitrya, Ith): 22 A
Nominal operating flow (AC-1, up to 690V): 22 A
Nominal insulation voltage (Ui): 690 V AC
Nominal impulse voltage (Uimp): 6 kV
Short-term flash resistance (1 s): 110 A
Maximum switching frequency (AC-1): 900 cycles/year
Maximum switching frequency (AC-3): 1200 cycles/year
Mechanical durability: 10 million cycles
Electrical durability (AC-3): 1.5 million cycles
Protection step (side terminal): IP20
Operating temperature range: -25 to +60 °C
Temperature range: -40 to +80 °C
Mounting method: DIN rail 35 mm / screw mounting
Connection type of head contacts: screw terminals
Overcut range of head terminals (hard wire, 1 wire): 1-16 mm²
Overcut range of head terminals (hard wire, 2 wires): 1-6 mm²
Cutting range of head terminals (wire with ferrule, 1 wire): 0.75-10 mm²
Overcut range of head terminals (wire with ferrule, 2 wires): 0.75-4 mm²
Type of connection of auxiliary/core contacts: screw terminals
Overcutting range of auxiliary/ceramic terminals (hard wire, 1 wire): 1-4 mm²
Range overcutting of auxiliary/ceramic terminals (hard wire, 2 wires): 1-4 mm²
Overcutting range of auxiliary/ceramic terminals (wire with ferrule, 1 wire): 0.75-2.5 mm²
Overcutting range of auxiliary/ceramic terminals (wire with ferrule, 2 wires): 0.75-2.5 mm²
Width: 45 mm
Height: 75 mm
Glibina: 85 mm
Vaga: 0.27 kg
Compliance with standards: IEC/EN 60947, VDE 0660, UL, CSA
