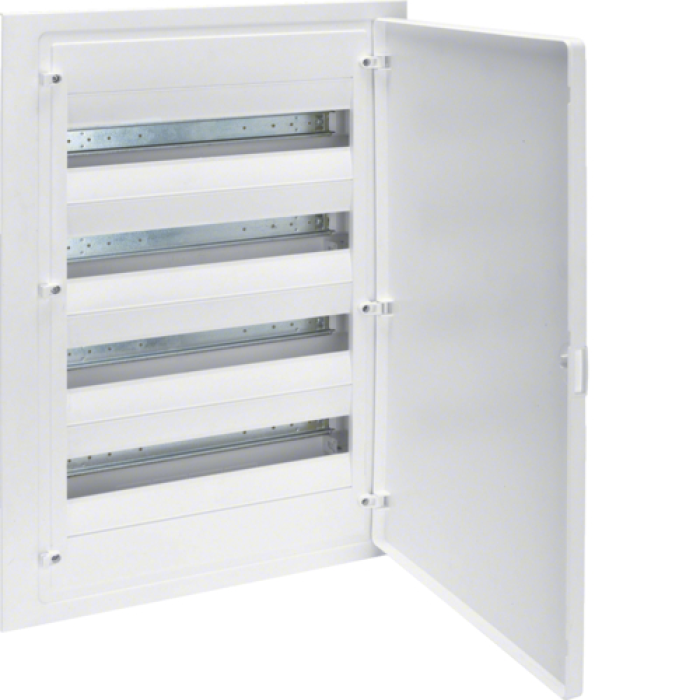

Shield with white doors, 72 models (4x18), GOLF

Description Shield with white doors, 72 models (4x18), GOLF

Installation type: Vbudovaniye
Number of modules: 72
Number of rows: 4
Modules per row: 18
Body material: Polystyrene
Door material: Sheet steel
Door colour: White (RAL 9010)
Protection level IP: IP40
Class of protection against strum levels: II (super insulation)
Impact resistance: IK07
Testing with roasted dart (for jet elements): 850 °C
Testing with roasted dart (for other parts of the body): 650 °C
Height: 755 mm
Width: 428 mm
Glibina zagal: 99 mm
Mounting depth (nishi): 72 mm
Depth of free space for wiring: 72 mm
PE terminal strength: 21x (1.5-4 mm²) / 2x (6-16 mm²)
Terminal strength N: 21x (1.5-4 mm²) / 2x (6-16 mm²)
DIN rail material: Galvanized steel
Possibility of re-hanging doors: So
Operating temperature range: -25 to +60 °C
Saving temperature range: -35 to +70 °C
Compliance with standards: IEC 60670-24, IEC 62208
Vaga: 4.8 kg
